PX5 Customized Android
● Rock-Chip PX5 Car Multimedia
● Octa-Core with CP&AA
● NXP6686 Radio IC
● TDA7851 Power Amplifier IC
● Bluetooth 5.0
Rock-Chip PX5
Octa-Core
NXP 6686
TDA 7851
Bluetooth 5.0
SPECIFICATIONS
| OS | Android 10 System |
| CPU | Rockchip PX5 ,Cortex-A53, Octa-Core |
| RAM | 4G SAMSUNG DDR3 |
| Flansh | 32G/64G |
| GPS | SIRF III |
| LCD Screen | Hanstar Screen 1024*600 IPS |
| Touch Screen | G+G (2.5D) |
| Phone Link | CarPlay / Android Auto / Mirror Link |
| TFT drive IC | Rockchip PX5 |
| Amplifer IC | TDA 7851 |
| Radio IC | NXP 6686 |
| Buletooth IC | GOC-MD-6202A V5.0 |
| Video encoder | HD(720p,1080i,1080p) |
| Video input | One way reversing CVBS input + one way rear video input |
| Audio input | AUX |
| Video output | Two way rear video output |
| Audio output | Line out 4ch Subwoofer 2ch |
| USB interface | USB1(CP&AA); USB2 |
| Multi media Parameters | |
| Music format | MP3、WMA、AAC、WAVE,FLAC,APE,OGG,RA |
| Video format | MKV,AVI,MOV,MP4,3GP,MPEG, DAT,VOB,WMV,FLV,RMVB,RM,TS,TRP,M2TS |
| Picture format | JPG/BMP/JEPG/GIF/PNG |
| Radio Parameters | |
| frequency range | FM：87.5MHz-108.0MHz, AM:522KHZ-1622KHZ |
| Radio storage station | FM/AM/RDS |
| Radio area | all over the world |
| Working voltage and memory current parameters | |
| working voltage | 9V～16V |
| working temperature | 一20℃一70℃ |
| Memory current | < 5MA |
| Power amplifier parameters | |
| Test voltage | 14.4V |
| Maximum output power | 4*45W |

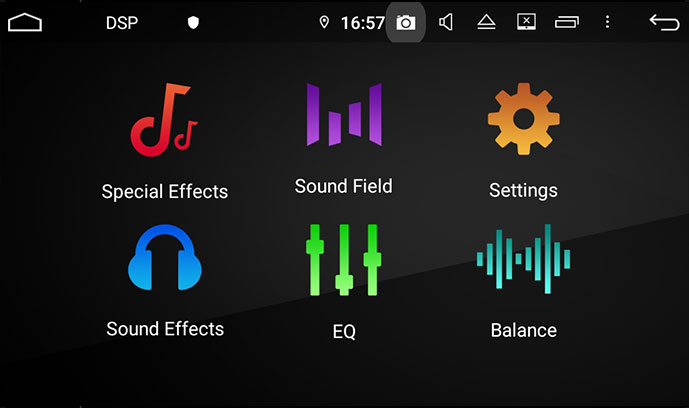

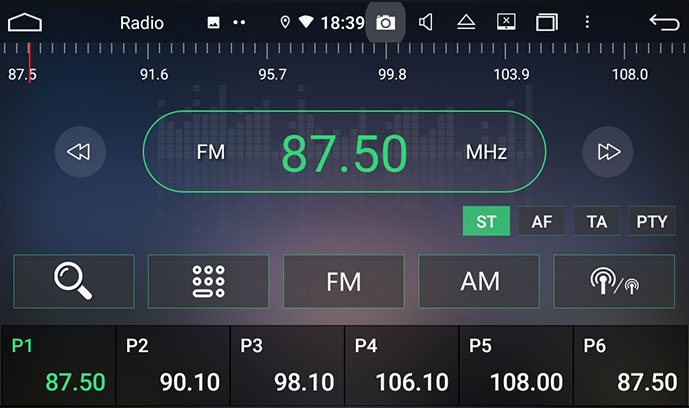

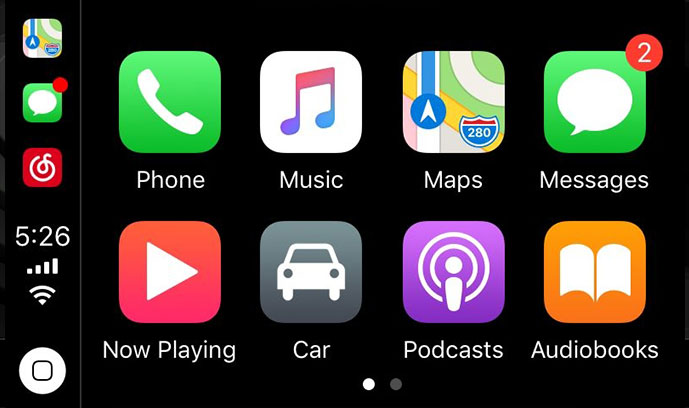

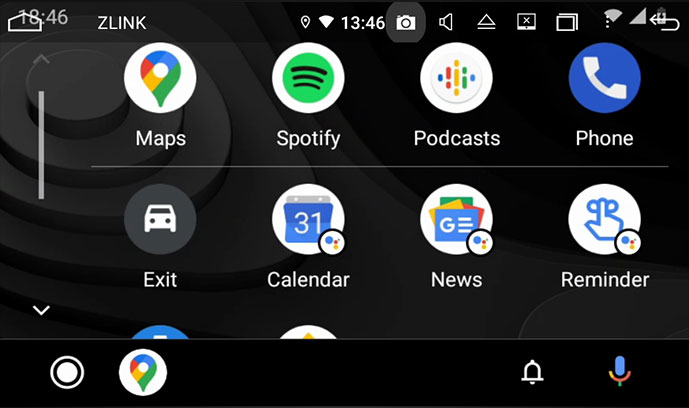

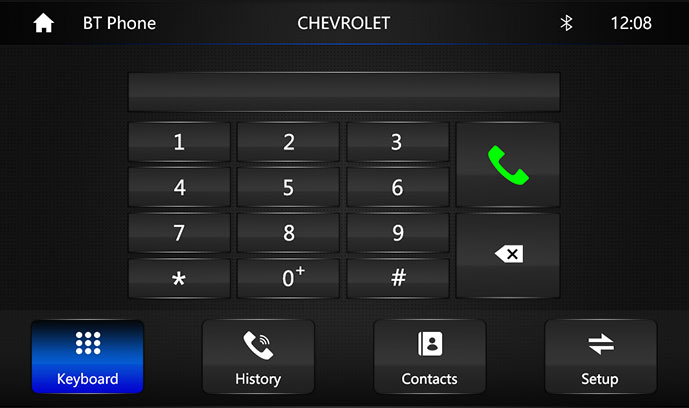

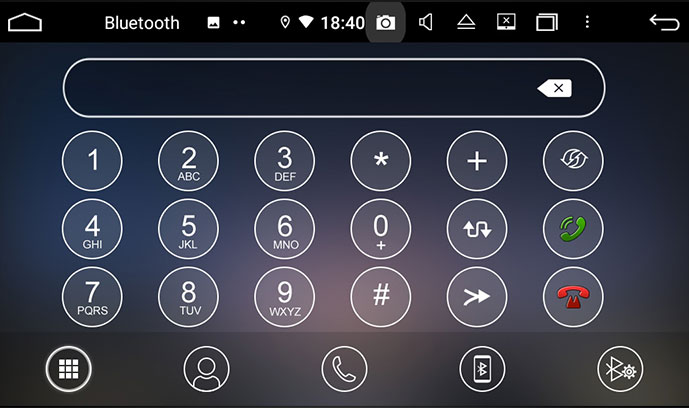

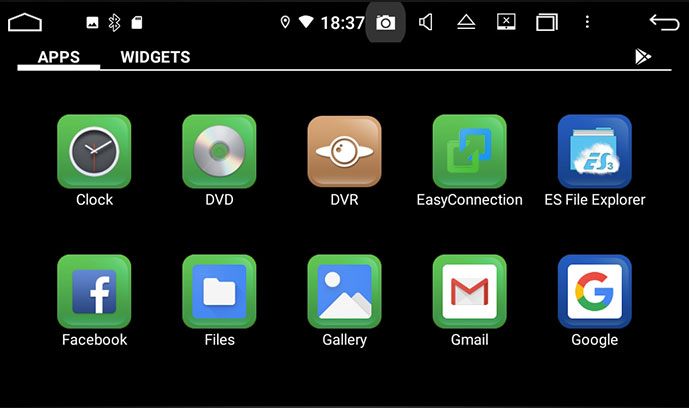

UI INTERFACE DESIGN
