9863 Public Android
● Octa-core with Cheaper Price
● wired and wireless CarPlay
● DSP EQ Mirror Link
Octa-core
CarPlay
SPECIFICATIONS
| OS | Android 10.0 System |
| CPU | UIS8581A Octa-core Cortex-A55 |
| RAM | 2G |
| Flansh | 32G |
| GPS | support |
| Phone Connect | wired and wireless CarPlay |
| LCD Screen | 720*1280 IPS（A+） |
| Touch Screen | 2.5D full touch （GT911） |
| Amplifer IC | TDA7388 |
| Radio IC | TDA7708 / TDA7786C |
| Buletooth IC | V5.0 |
| Video encoder | HD(720p,1080p) |
| wifi | support |
| DVR | support |
| TPMS | support |
| Rear view | CVBS and AHD rear view camera input |
| Google Play | support |
| USB interface | USB1;USB2 |
| Multi media Parameters | |
| Music format | MP3、WMA、AAC、RM、LFAC etc |
| Video format | MPEG-1/2/4、H264、H263、VC1、RV、RMVB、DivX、Sorenson SparK、Spark、VP8、AVS Stream… |
| Picture format | JPG/BMP/JEPG/GIF/PNG |
| Radio Parameters | |
| frequency range | FM：76.0MHz-108.0MHz, AM: 522KHz-1620KHz |
| Radio storage station | FM/AM/RDS |
| Radio area | All over the world |
| Working voltage and memory current parameters | |
| working voltage | 9V～16V |
| working temperature | 一20℃一70℃ |
| Memory current | < 5MA |
| Power amplifier parameters | |
| Test voltage | 14.4V |
| Maximum output power | 4*30W |

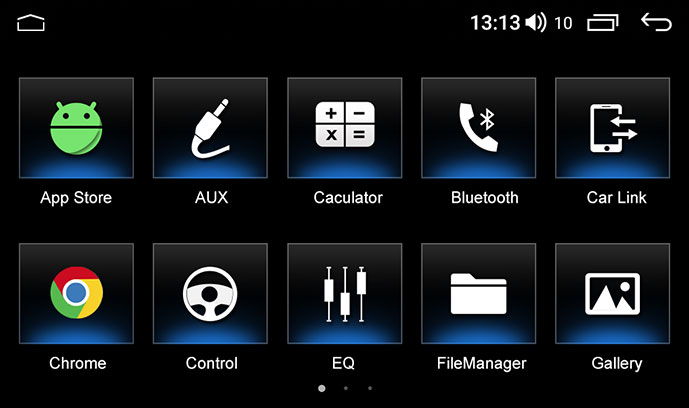

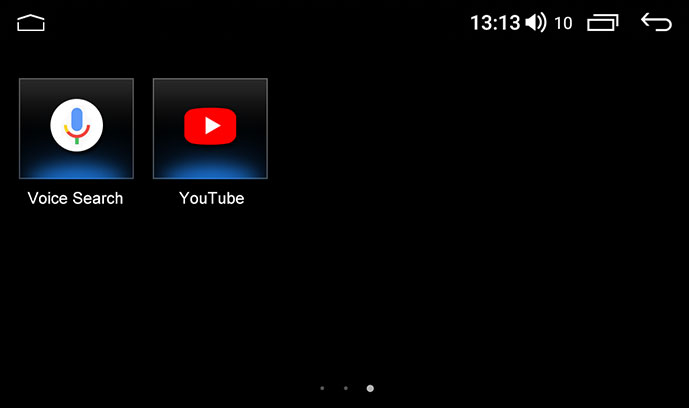

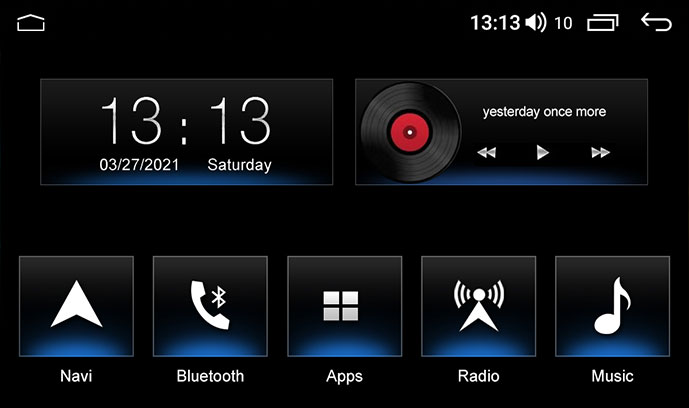

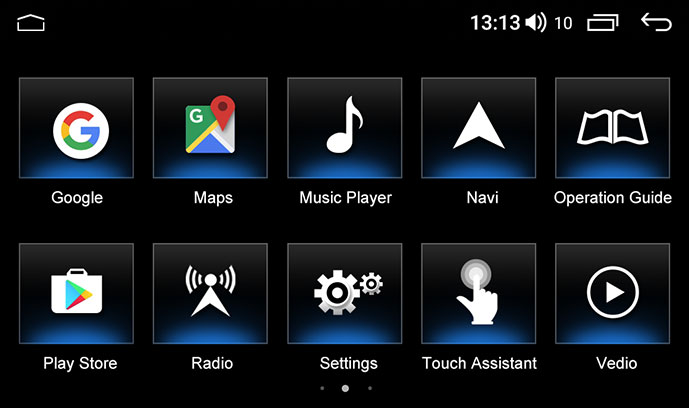

UI INTERFACE DESIGN
