Nissan Teana Car Stereo Distributor, Years 2019 to Present

Nissan Car Stereo Distributor with 12.3" QLED Special Plastic Frame IPS Touchscreen,1920*720 Resolution, Octa-Core Cortex A75+Cortex A55 2G+32G, 3G+32G, 4G+64G, 6G+128G

Item #: DP9039

Inquire Now Next Product

VIDEO SPECIFICATIONS FEATURES WARRANTY

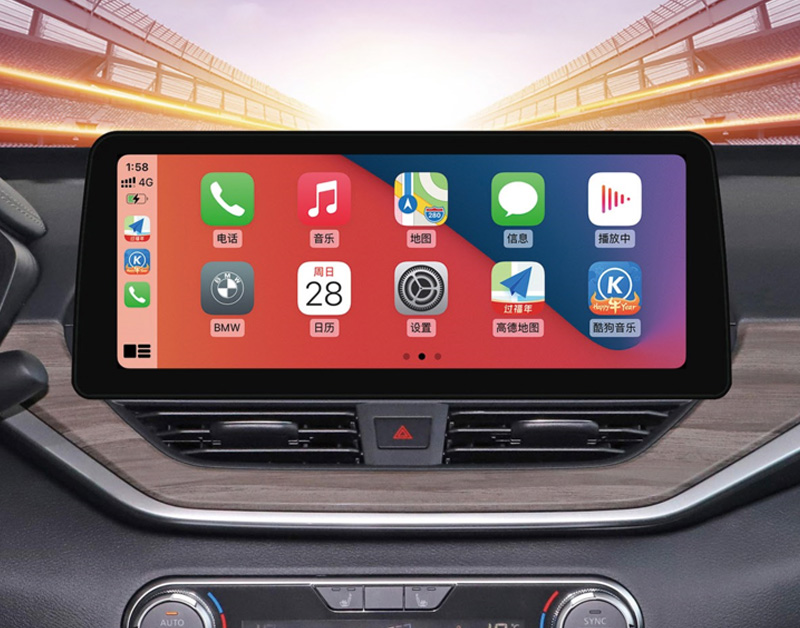

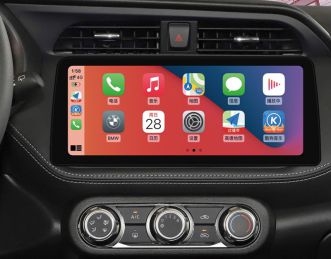

12.3-inch Screen Special Android Car Stereo

SPECIFICATIONS

OS	Android 10 System
CPU	UIS7862 ,Cortex A75+Cortex A55, Octa-Core
RAM	2G/3G/4G/6G
Flansh	32G/64G/128G
GPS	SIRF III
LCD Screen	BOE 19201080/1024600/1280*720 IPS
Touch Screen	G+G (2.5D)
Phone Link	CarPlay / Android Auto / Mirror Link
TFT drive IC	UIS7862
Amplifier IC	TDA 7388
Radio IC	TDA 7708/TDA 7786C/NXP6851
Buletooth IC	V5.0
Video encoder	HD(720p,1080i,1080p)
Video input	4 way reversing CVBS input + 4 way 360 camera
Audio input	AUX DSP
Video output	Two way rear video output
Audio output	Line out 4ch Subwoofer 2ch
USB interface	USB1(CP&AA); USB2; USB3
Multimedia Parameters
Music format	MP3、WMA、AAC、WAVE,FLAC,APE,OGG,RA
Video format	MKV,AVI,MOV,MP4,3GP,MPEG, DAT,VOB,WMV,FLV,RMVB,RM,TS,TRP,M2TS
Picture format	JPG/BMP/JEPG/GIF/PNG
Radio Parameters
frequency range	FM：87.5MHz-108.0MHz, AM:522KHZ-1622KHZ
Radio storage station	FM/AM/RDS
Radio area	Global
Working voltage and memory current parameters
working voltage	9V～16V
working temperature	一20℃一70℃
Memory current	< 5MA
Power amplifier parameters
Test voltage	14.4V
Maximum output power	4*25W

Nissan Teana Car Stereo, Years 2019 to Present

FEATURES

3 Rear USB Cables
Carplay (Wired and wireless) and Android Auto (Wired and wireless)
1920*720/IPS/QLED HD LCD
12.3-inch mold for Special Android
2G+32G, 4G+64G, 6G+128G
Built-in BT 5.0
With Fan on the heatsink
TDA 7708 radio IC

WARRANTY

Warranty: 18 Months Manufacturer warranty

We provide warranty service of 18 months after the arrival of the goods and provide free accessories and maintenance instructions. If you have any questions within 18 hours from 6：00 am to 12：00 pm every day, you can contact our after-sales team online to get timely support.
