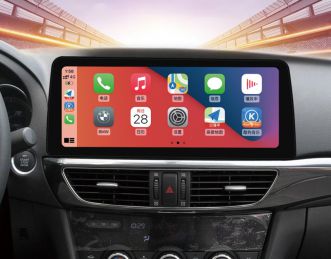

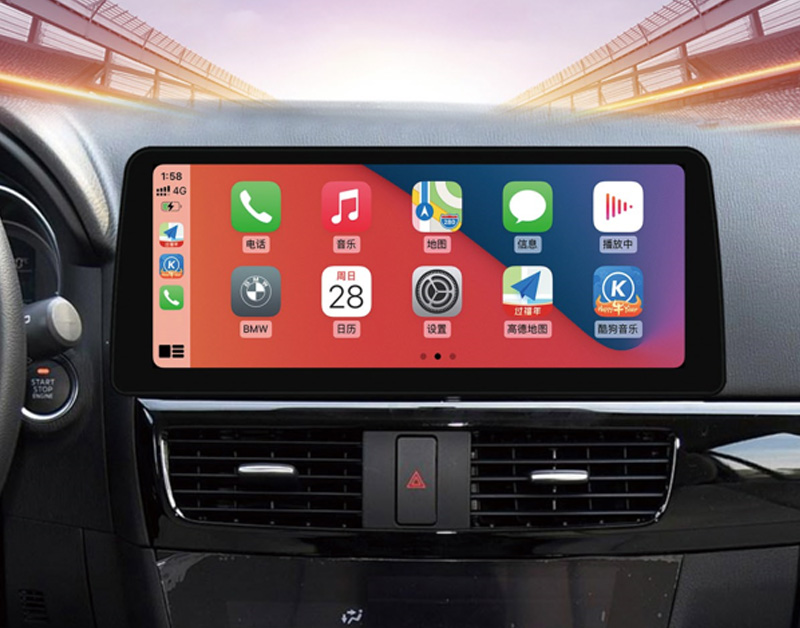

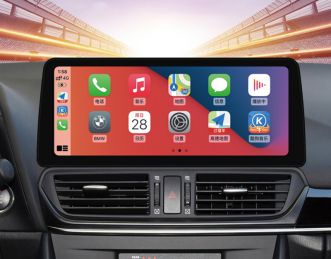

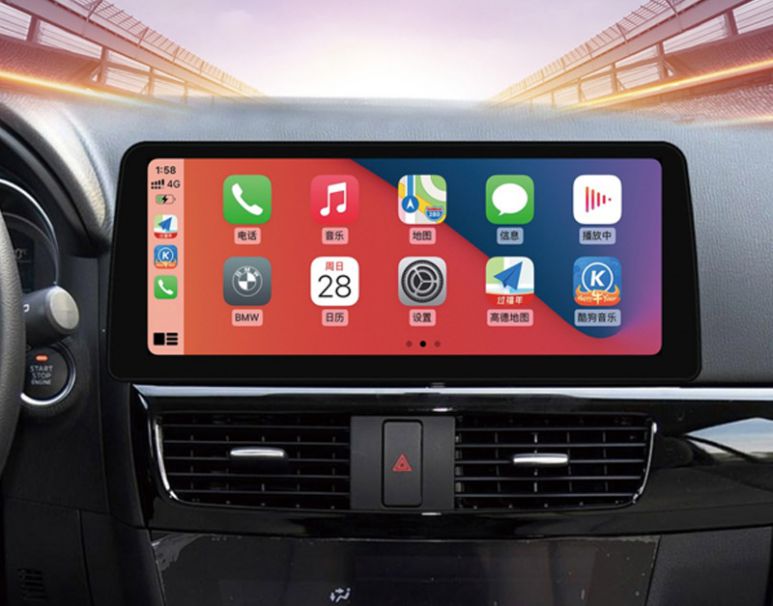

Mazda CX-5 Car Audio Online Supplier, Years 2013-2016

Wired and Wireless Apple CarPlay and Android Auto Z-Link, GPS Built-in FM AM RDS, 2G+32G, 3G+32G,  4G+64G, 6G+128G

Item #: DP9043


Share:

12.3-inch Screen Special Android Car Stereo

SPECIFICATIONS

OS Android 10 System
CPU UIS7862 ,Cortex A75+Cortex A55, Octa-Core
RAM 2G/3G/4G/6G
Flansh 32G/64G/128G
GPS  SIRF III
LCD Screen BOE 1920*1080/1024*600/1280*720 IPS
Touch Screen G+G  (2.5D)
Phone LinkCarPlay / Android Auto / Mirror Link
TFT drive IC UIS7862
Amplifier IC TDA 7388
Radio IC TDA 7708/TDA 7786C/NXP6851
Buletooth IC V5.0
Video encoder HD(720p,1080i,1080p)
Video input 4 way reversing CVBS input + 4 way 360 camera
Audio input AUX DSP
Video output Two way rear video output
Audio output Line out 4ch Subwoofer 2ch
USB interface USB1(CP&AA); USB2; USB3
Multimedia Parameters
Music format MP3、WMA、AAC、WAVE,FLAC,APE,OGG,RA
Video format MKV,AVI,MOV,MP4,3GP,MPEG, DAT,VOB,WMV,FLV,RMVB,RM,TS,TRP,M2TS
Picture formatJPG/BMP/JEPG/GIF/PNG
Radio Parameters
frequency rangeFM:87.5MHz-108.0MHz,  AM:522KHZ-1622KHZ
Radio storage station FM/AM/RDS
Radio area Global
Working voltage and memory current parameters
working voltage         9V~16V
working temperature     一20℃一70℃
Memory current    < 5MA
Power amplifier parameters
Test voltage 14.4V
Maximum output power  4*45W


Mazda CX-5 Car Stereo, Years 2013-2016

FEATURES

  • 3 Rear USB Cables


  • Carplay (Wired and wireless) and Android Auto (Wired and wireless)


  • 1920*720/IPS/QLED HD LCD


  • 12.3-inch mold for Special Android


  • 2G+32G,  4G+64G, 6G+128G


  • Built-in BT 5.0


  • With Fan on the heatsink


  • TDA 7708 radio IC


WARRANTY

Warranty: 18 Months Manufacturer warranty

We provide warranty service of 18 months after the arrival of the goods and provide free accessories and maintenance instructions. If you have any questions within 18 hours from 6:00 am to 12:00 pm every day, you can contact our after-sales team online to get timely support.
