OEM Brand Special Android CarPlay Receiver, AM/FM/RDS, SmartPhone Autoplay, SWC Learning for Siri Voice Control, 2G+32G, 3G+32G, 4G+64G, 6G+128G
Item #: DP9047

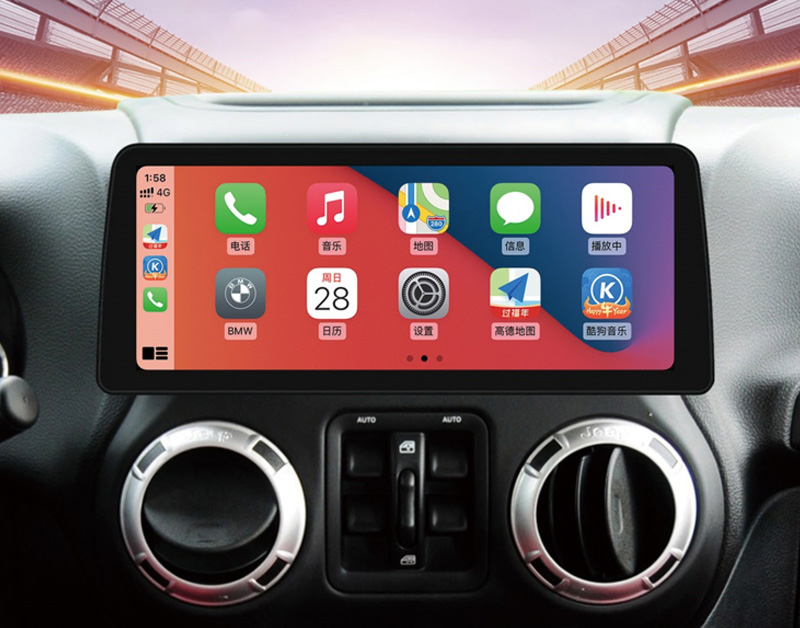

12.3-inch Screen Special Android Car Stereo
SPECIFICATIONS
| OS | Android 10 System |
| CPU | UIS7862 ,Cortex A75+Cortex A55, Octa-Core |
| RAM | 2G/3G/4G/6G |
| Flash | 32G/64G/128G |
| GPS | SIRF III |
| LCD Screen | BOE 1920*1080/1024*600/1280*720 IPS |
| Touch Screen | G+G (2.5D) |
| Phone Link | CarPlay / Android Auto / Mirror Link |
| TFT drive IC | UIS7862 |
| Amplifer IC | TDA 7388 |
| Radio IC | TDA 7708/TDA 7786C/NXP6851 |
| Buletooth IC | V5.0 |
| Video encoder | HD(720p,1080i,1080p) |
| Video input | 4 way reversing CVBS input + 4 way 360 camera |
| Audio input | AUX DSP |
| Video output | Two way rear video output |
| Audio output | Line out 4ch Subwoofer 2ch |
| USB interface | USB1(CP&AA); USB2; USB3 |
| Multimedia Parameters | |
| Music format | MP3、WMA、AAC、WAVE,FLAC,APE,OGG,RA |
| Video format | MKV,AVI,MOV,MP4,3GP,MPEG, DAT,VOB,WMV,FLV,RMVB,RM,TS,TRP,M2TS |
| Picture format | JPG/BMP/JEPG/GIF/PNG |
| Radio Parameters | |
| frequency range | FM：87.5MHz-108.0MHz, AM:522KHZ-1622KHZ |
| Radio storage station | FM/AM/RDS |
| Radio area | Global |
| Working voltage and memory current parameters | |
| working voltage | 9V～16V |
| working temperature | 一20℃一70℃ |
| Memory current | < 5MA |
| Power amplifier parameters | |
| Test voltage | 14.4V |
| Maximum output power | 4*45W |
FEATURES
3 Rear USB Cables
Carplay (Wired and wireless) and Android Auto (Wired and wireless)
1920*720/IPS/QLED HD LCD
12.3-inch mold for Special Android
2G+32G, 4G+64G, 6G+128G
Built-in BT 5.0
With Fan on the heatsink
TDA 7708 radio IC
WARRANTY
Warranty: 18 Months Manufacturer warranty
We provide warranty service of 18 months after the arrival of the goods and provide free accessories and maintenance instructions. If you have any questions within 18 hours from 6：00 am to 12：00 pm every day, you can contact our after-sales team online to get timely support.
