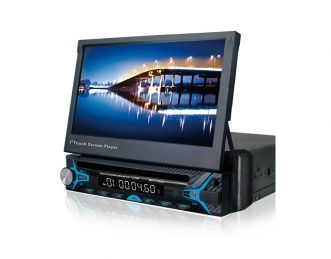

Single-Din In-Dash with 7" Flexible HD LCD Full Touch Screen, Sunplus-8288H, Android or Wince Solutions Optional, USB AUX SD
Item #: DP9027
Single-DIN car DVD Player with Screen
SPECIFICATIONS
| OS | 32-bit RISC OS |
| CPU | SPHE8288H Sunplus |
| MCU | SY8008 |
| RAM | Built-in DDR2 512M |
| Flash | 64M |
| GPS | GPS CARD support (optional) |
| Easy connect | Support iPhone and android smartphone |
| LCD Screen | 800*480 / 1024*600 |
| Touch Screen | Full touch capacitive screen or resistive screen optional |
| Amplifer IC | TDA 7388 |
| Radio IC | SI4730/TDA7786 |
| Buletooth IC | Built-in MCU (V 4.2) |
| Video encoder | HD(720p,1080p) |
| DVR | support |
| TPMS | support |

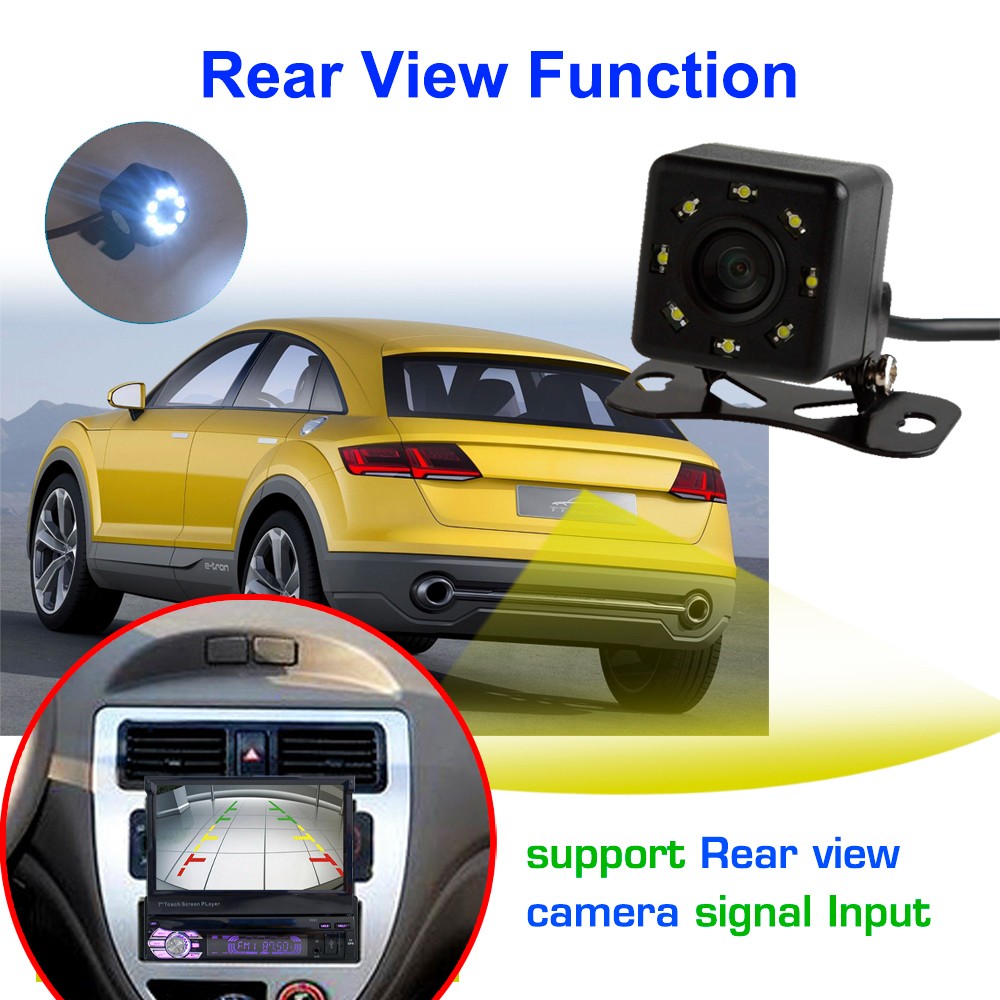

| Rear view | CVBS and AHD rear view camera input |
| USB interface | USB1;USB2 |
| Multi media Parameters | |
| Music format | MP3、WMA、AAC、RM、LFAC etc |
| Video format | MPEG-1/2/4、H264、H263、VC1、RV、RMVB、DivX、Sorenson Spark、Spark、VP8、AVS Stream… |
| Picture format | JPG/BMP/JEPG/GIF/PNG |
| Radio Parameters | |
| frequency range | FM：76.0MHz-108.0MHz, AM: 522KHz-1710KHz |
| Radio storage station | FM/AM/RDS |
| Radio area | Global |
| Working voltage and memory current parameters | |
| working voltage | 9V～16V |
| working temperature | 一20℃一70℃ |
| Memory current | < 5MA |
| Power amplifier parameters | |
| Test voltage | 14.4V |
| Maximum output power | 4*25W |

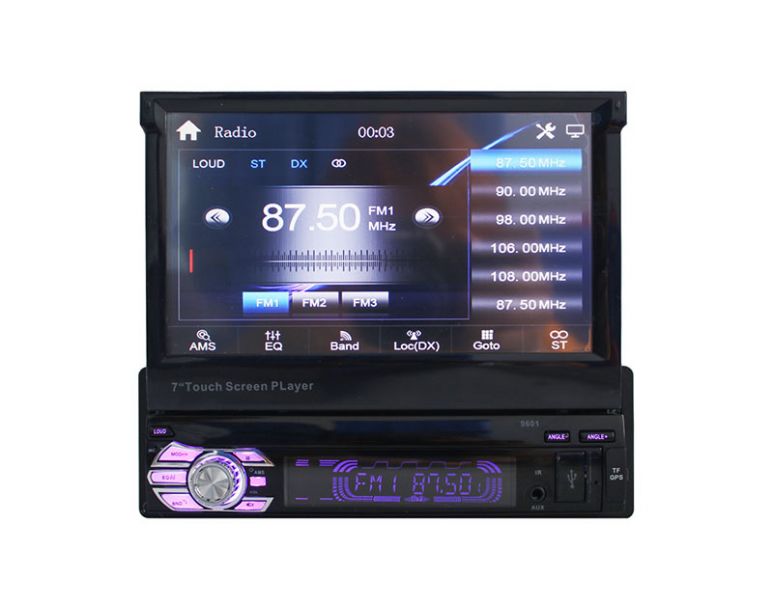

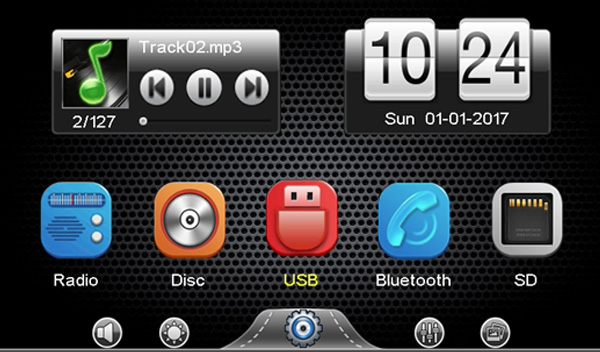

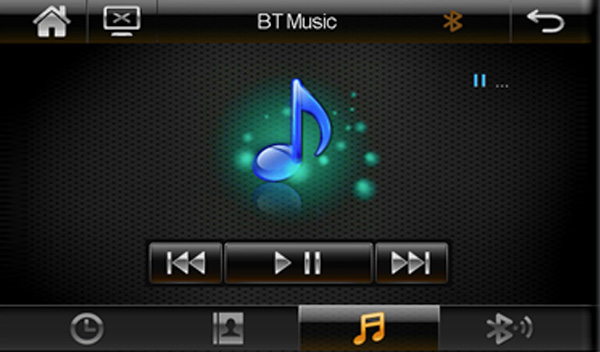

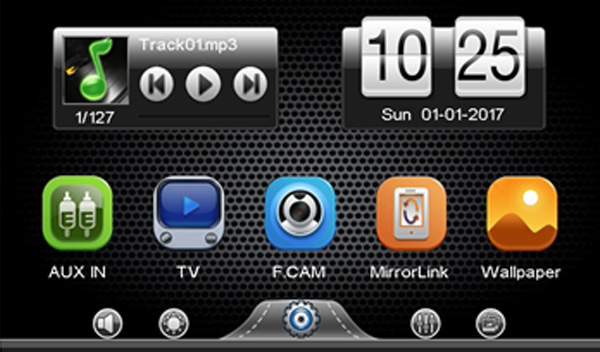

INTERFACE DISPLAY
FEATURES

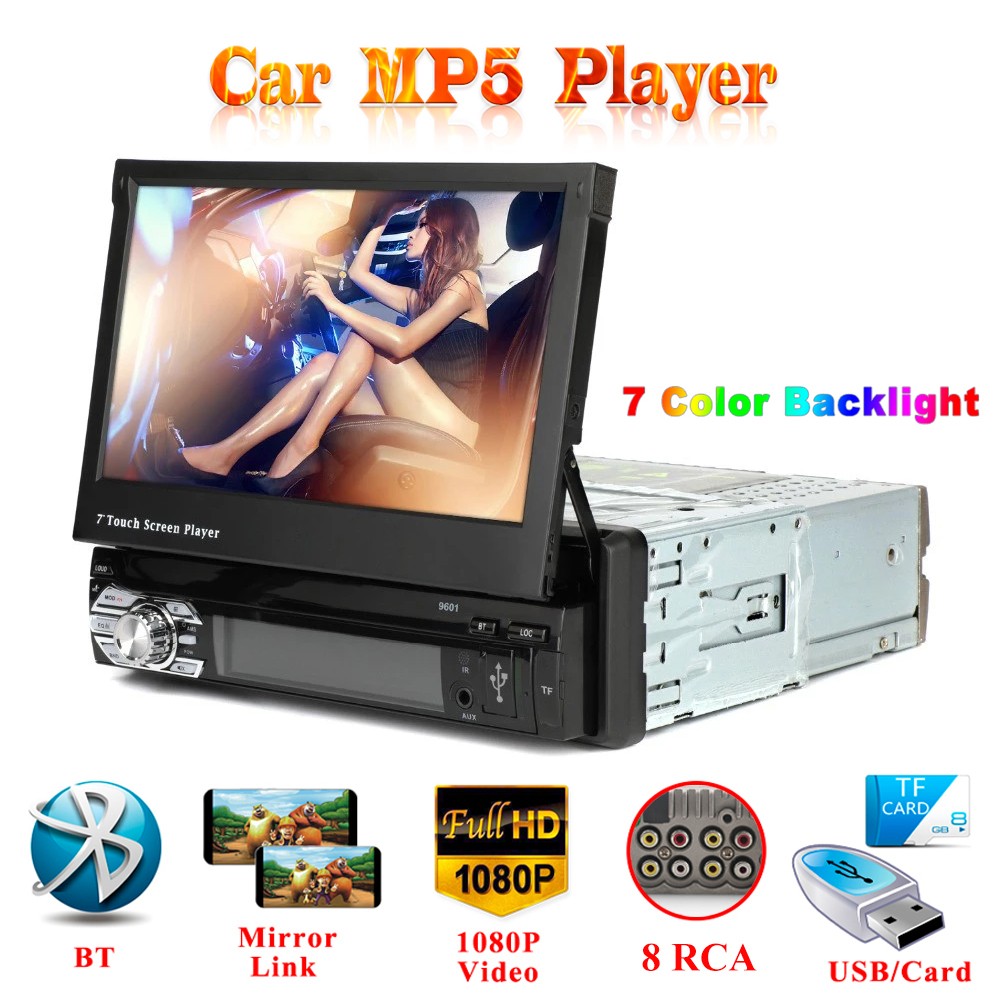

Single-DIN Car DVD Player

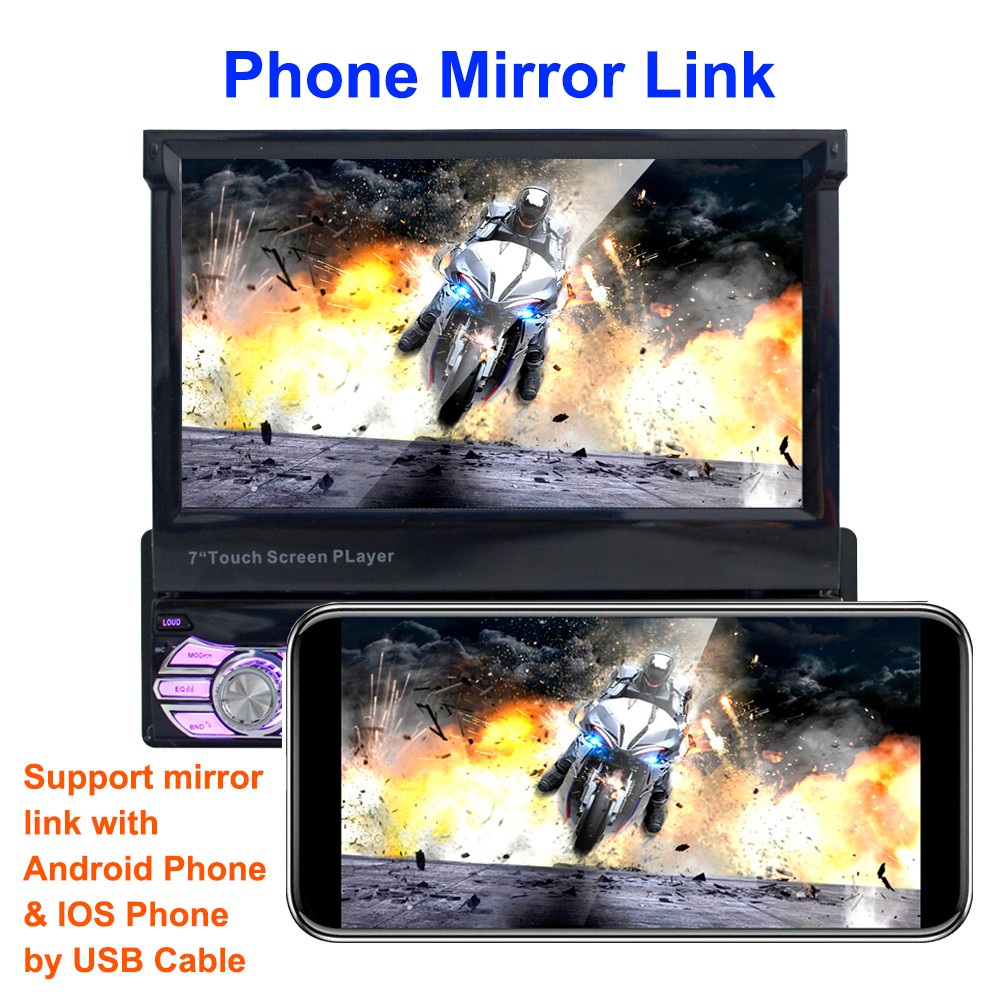

Mirror Link
Bluetooth
7" in-dash DVD

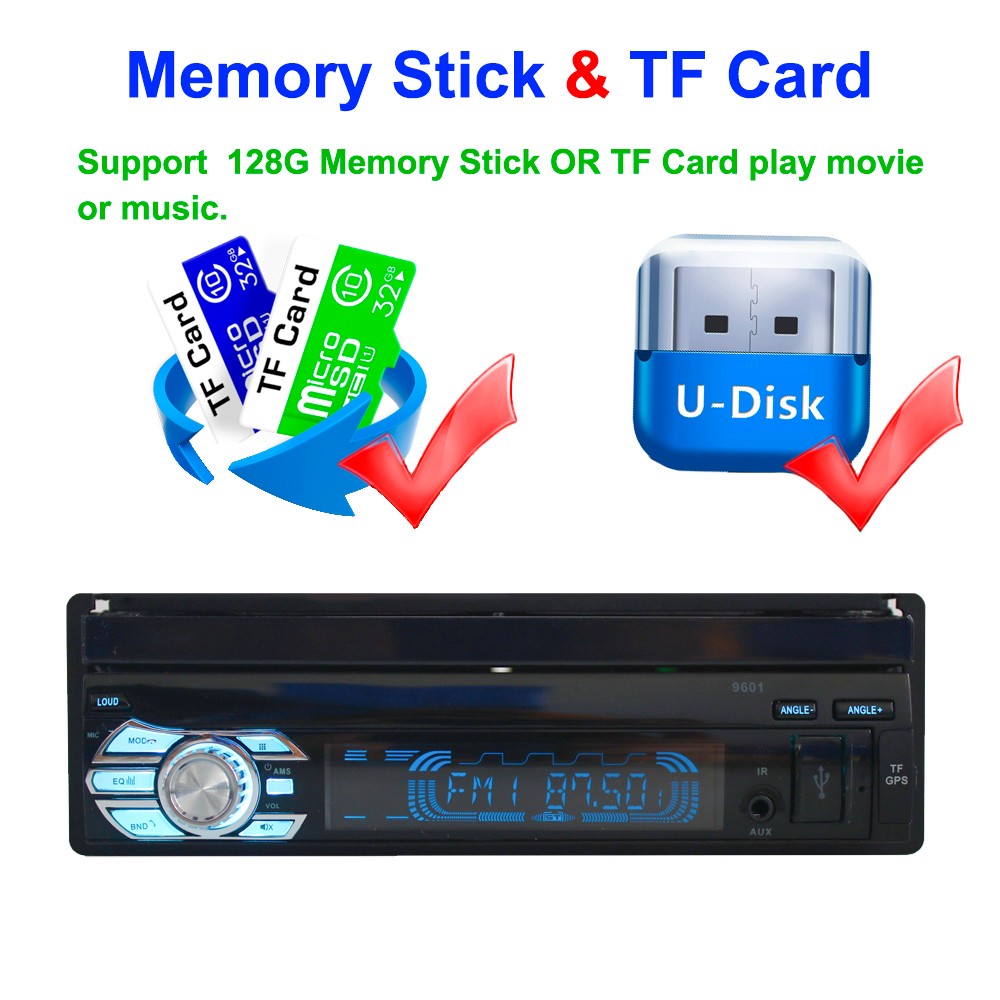

Dual USB
1. Power supply voltage: DC12V

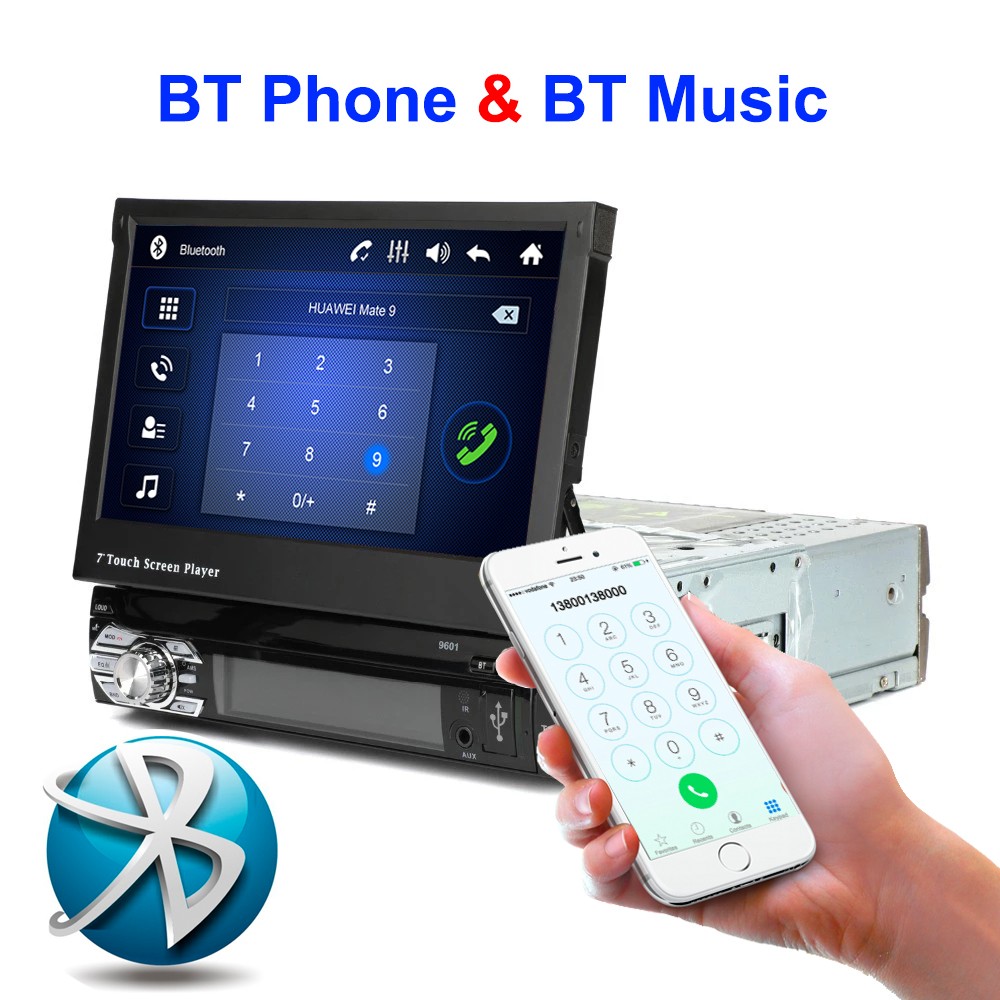

2. Bluetooth phone support Bluetooth music player
3. Support reverse video input, reversing the priority
4. Support LRC lyrics and ID3 display
5. Use 24Bit DAC, precision restore fidelity sound quality;
6. Support APE, FLAC, WAV, DIS lossless audio formats, support for high rate!
7. Support 24Bit 96KHz WAV format
8. Audio playback support: DIS, MP3, WMA, ACC, OGG, WAV, RA, AC3, MP2, AMR, etc.

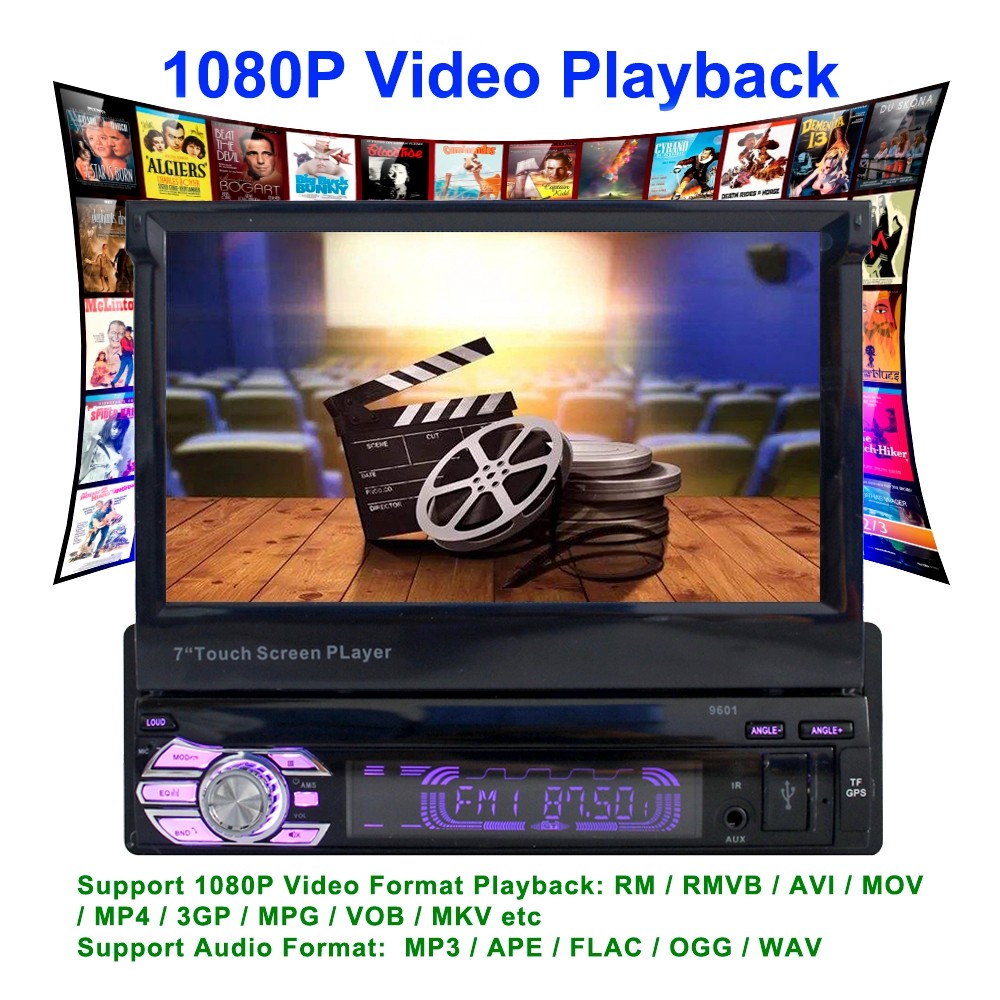

9. Video playback support: AVI, MP4, FLV, PMP, RM, RMVB, MPG format.
10. Support picture browsing (JPEG format)
WARRANTY
Warranty: 18 Months Manufacturer warranty
We provide warranty service of 18 months after the arrival of the goods and provide free accessories and maintenance instructions. If you have any questions within 18 hours from 6：00 am to 12：00 pm every day, you can contact our after-sales team online to get timely support.
