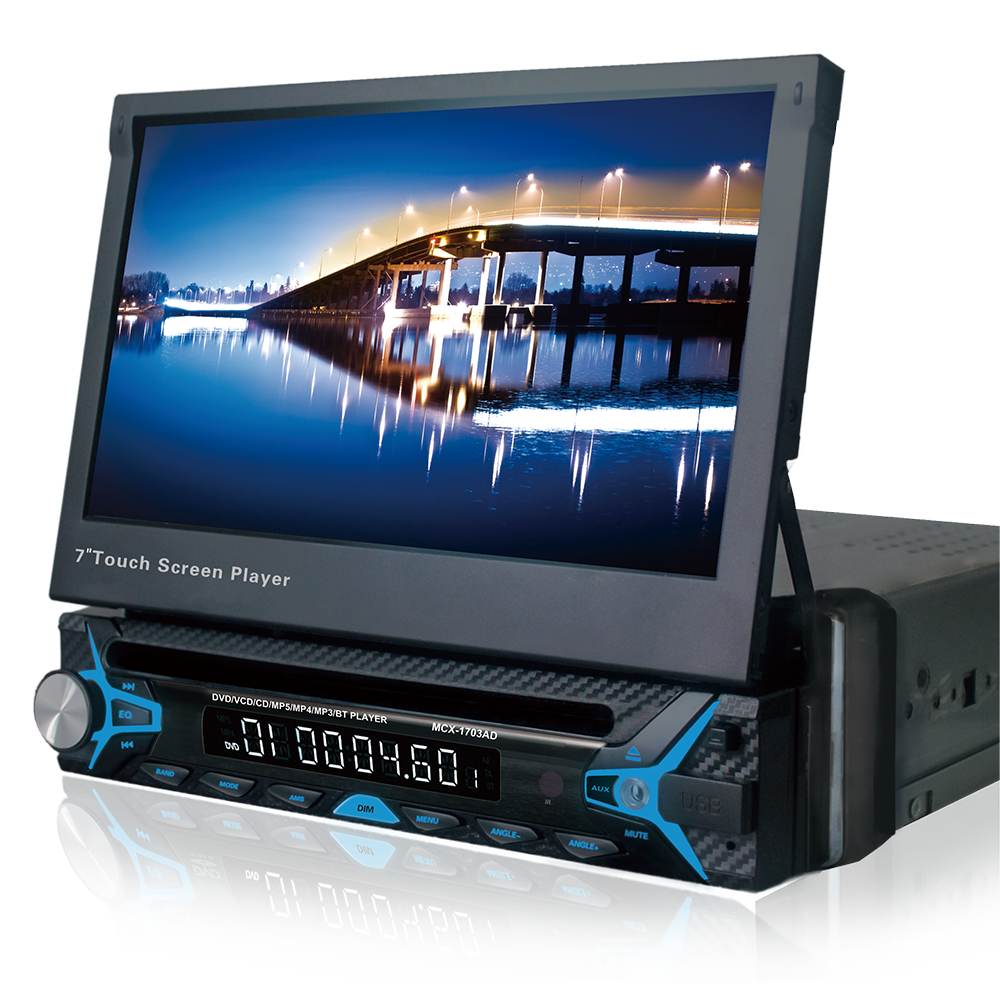

7-inch In-dash Car DVD Player Single-DIN Car Radio Manufacturer

Single-Din Car Radio with 7" Touch Screen, Sunplus-8288H car DVD Player with the Display Screen, Smart Phone link, BT, USB

Item #: DP9026


Share:

Single-DIN car DVD Player with Screen

SPECIFICATIONS

OS 32-bit RISC OS
CPU SPHE8288H Sunplus
MCUSY8008
RAM Built-in DDR2 512M
Flash 64M
GPS  GPS CARD support (optional)
Easy connect Support iPhone and android smartphone
LCD Screen800*480 / 1024*600
Touch ScreenFull touch capacitive screen or resistive screen optional
Amplifer IC TDA 7388
Radio IC SI4730/TDA7786
 Buletooth IC Built-in MCU (V 4.2)
Video encoder HD(720p,1080p)
DVR support
TPMS support
Rear view CVBS and AHD rear view camera input
USB interface USB1;USB2
Multi media Parameters
Music format MP3、WMA、AAC、RM、LFAC etc
Video format MPEG-1/2/4、H264、H263、VC1、RV、RMVB、DivX、Sorenson Spark、Spark、VP8、AVS Stream…
Picture formatJPG/BMP/JEPG/GIF/PNG
Radio Parameters
frequency rangeFM:76.0MHz-108.0MHz,  AM: 522KHz-1710KHz
Radio storage station FM/AM/RDS
Radio area Global
Working voltage and memory current parameters
working voltage         9V~16V
working temperature     一20℃一70℃
Memory current    < 5MA
Power amplifier parameters
Test voltage 14.4V
Maximum output power   4*45W

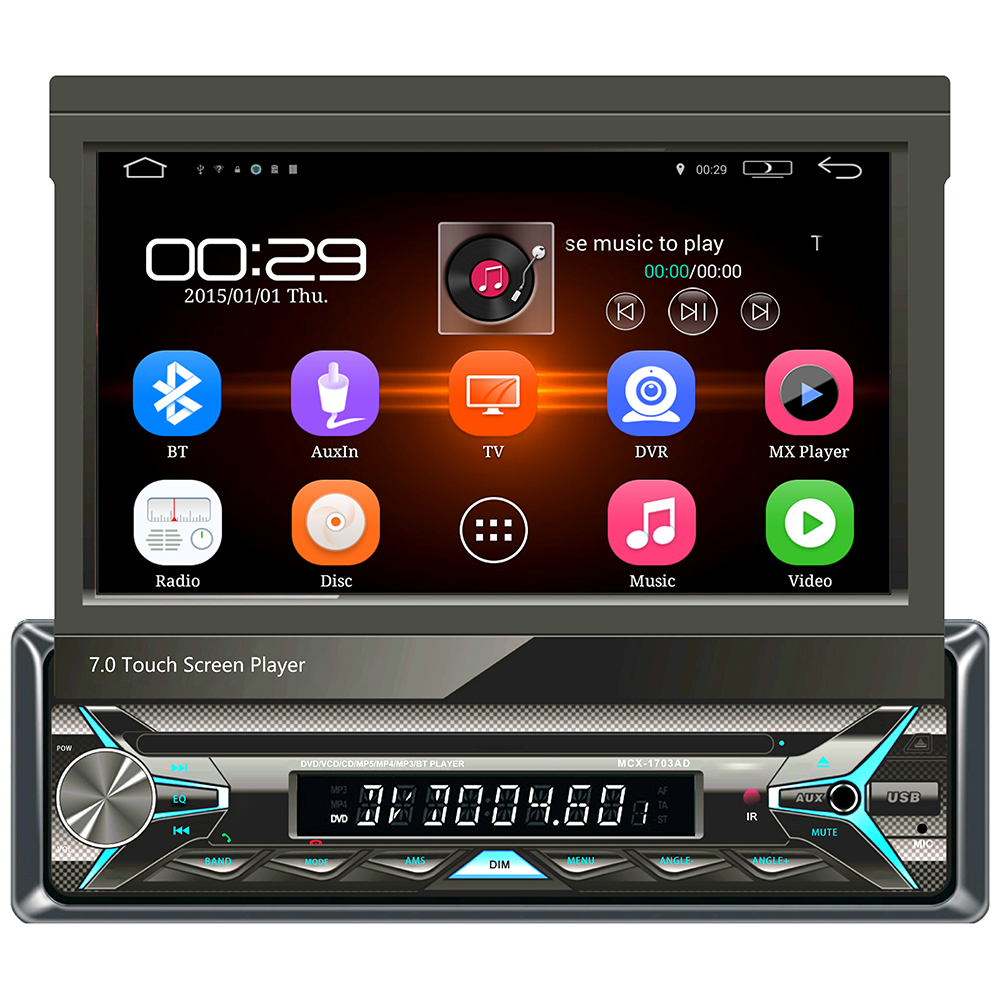

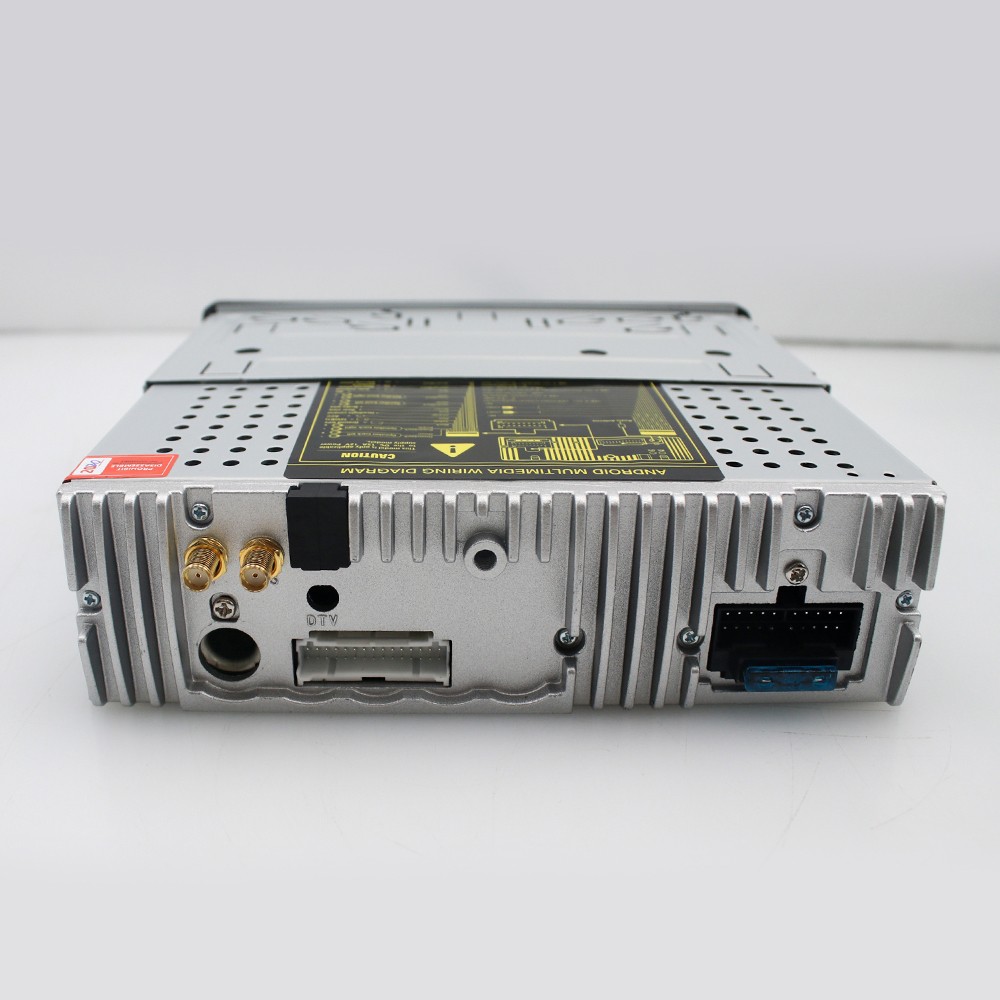

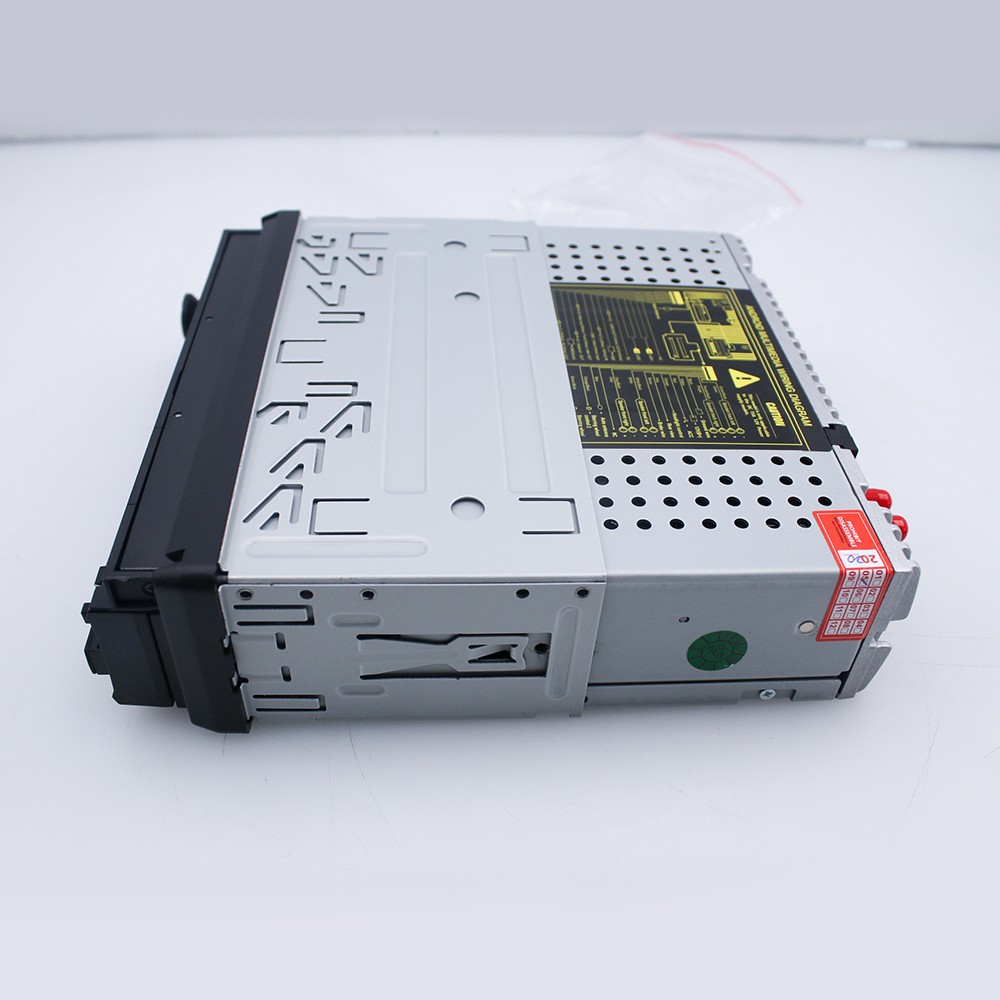

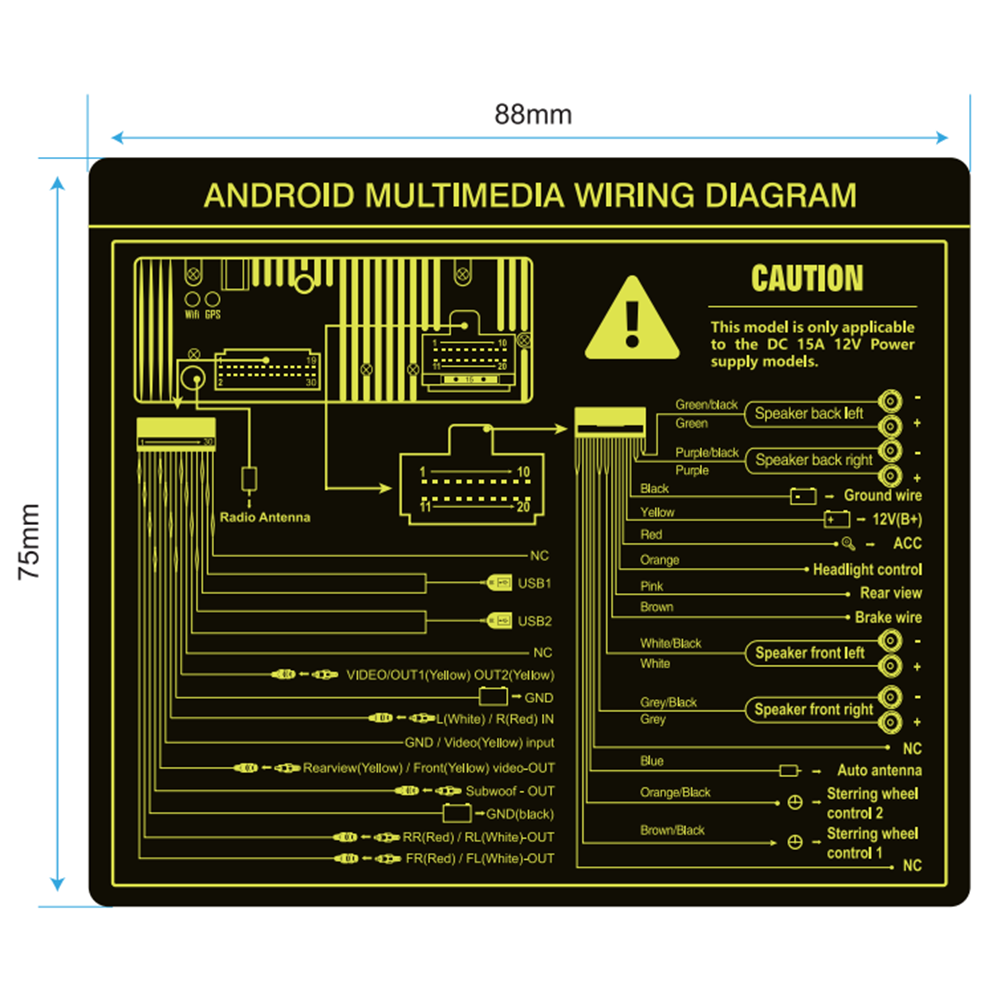

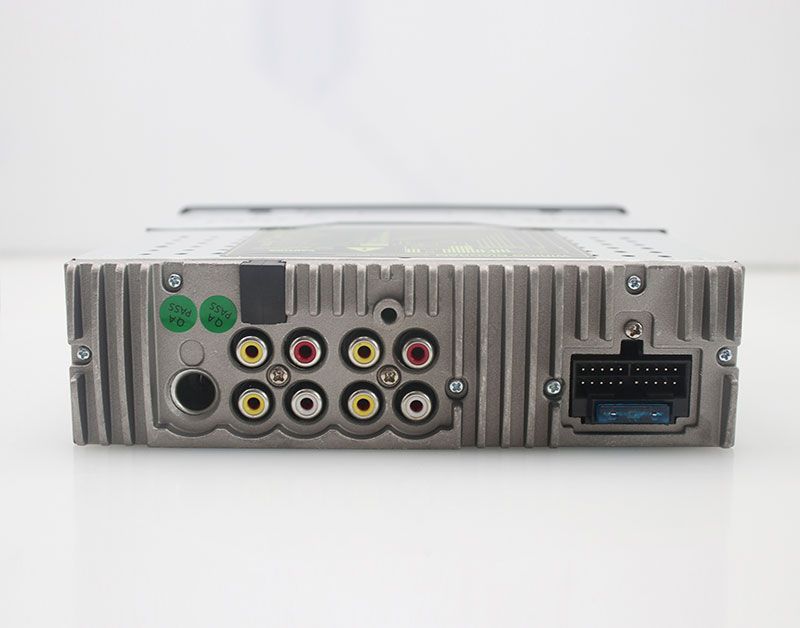

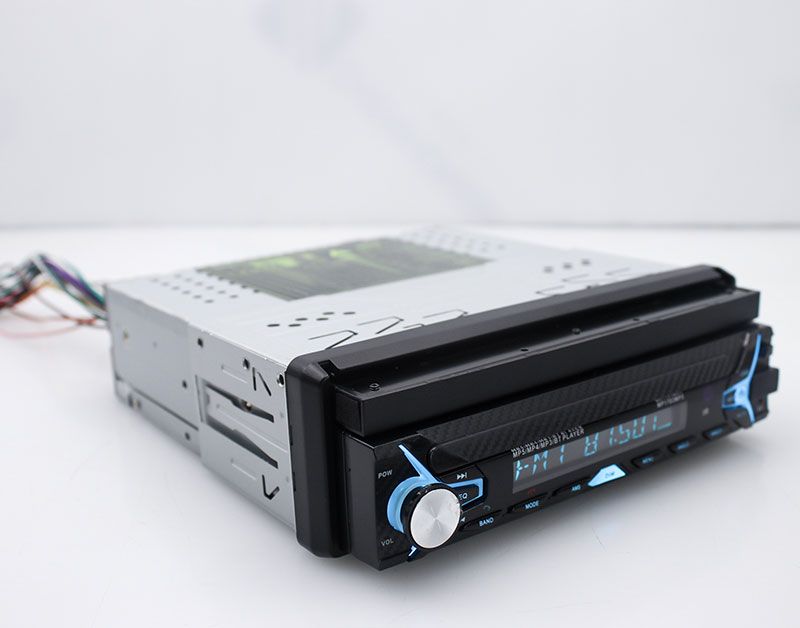

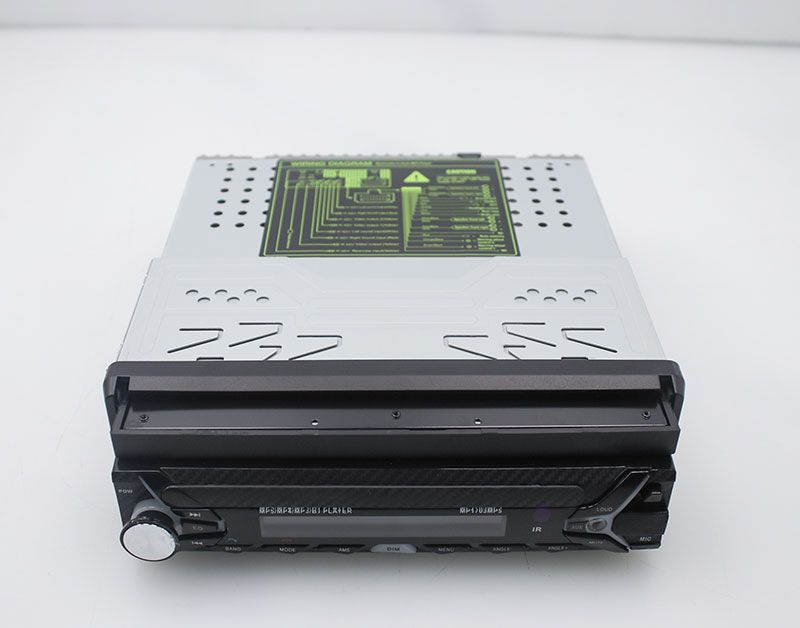

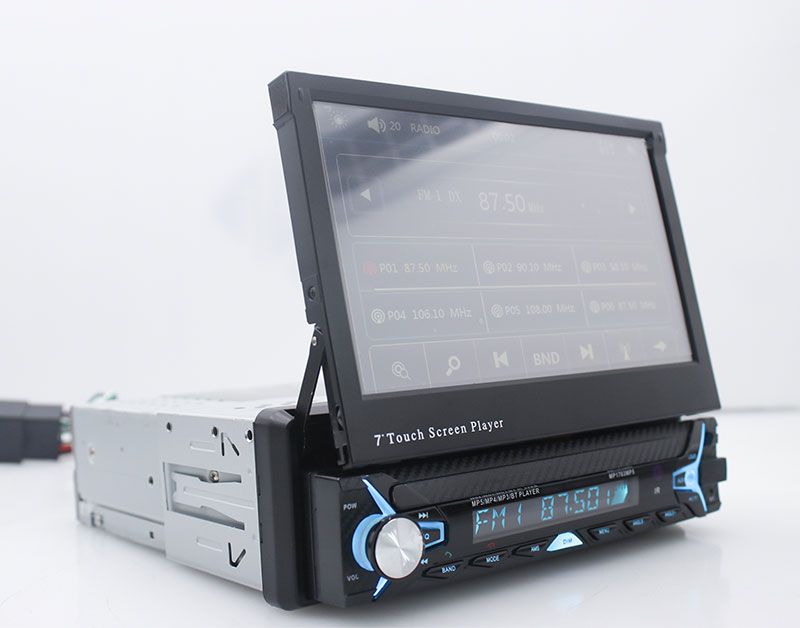

INTERFACE DISPLAY

  • 7-inch In-dash Car DVD Player Single-DIN Car Radio Manufacturer

  • 7-inch In-dash Car DVD Player Single-DIN Car Radio Manufacturer

  • 7-inch In-dash Car DVD Player Single-DIN Car Radio Manufacturer

  • 7-inch In-dash Car DVD Player Single-DIN Car Radio Manufacturer

FEATURES

Single-DIN Car DVD Player

Mirror Link

Bluetooth

Flexible 7"  in-dash DVD

Dual USB


1. Power supply voltage: DC12V

2. Bluetooth phone support Bluetooth music player
3. Support reverse video input, reversing the priority
4. Support LRC lyrics and ID3 display
5. Use 24Bit DAC, precision restore fidelity sound quality;
6. Support APE, FLAC, WAV, DIS lossless audio formats, support for high rate!
7. Support 24Bit 96KHz WAV format
8. Audio playback support: DIS, MP3, WMA, ACC, OGG, WAV, RA, AC3, MP2, AMR, etc.
9. Video playback support: AVI, MP4, FLV, PMP, RM, RMVB, MPG format.
10. Support picture browsing (JPEG format)

7-inch In-dash Car DVD Player Single-DIN Car Radio Manufacturer


7-inch In-dash Car DVD Player Single-DIN Car Radio Manufacturer

7-inch In-dash Car DVD Player Single-DIN Car Radio Manufacturer

7-inch In-dash Car DVD Player Single-DIN Car Radio Manufacturer

7-inch In-dash Car DVD Player Single-DIN Car Radio Manufacturer

7-inch In-dash Car DVD Player Single-DIN Car Radio Manufacturer




WARRANTY

Warranty: 18 Months Manufacturer warranty

We provide warranty service of 18 months after the arrival of the goods and provide free accessories and maintenance instructions. If you have any questions within 18 hours from 6:00 am to 12:00 pm every day, you can contact our after-sales team online to get timely support.
