MTK8667 Automotive Grade
● Octa-core Android System Car Stereos
● Wireless Apple CarPlay and Android Auto Function
● Built-in DSP, 4G Sim & WiFi Function, Support 4-Ch 1080P AVM 360
● MTK 8667 Automotive Grade Chip for Car Factory OEM & ODM Project
SPECIFICATIONS
| OS | Android System |
| CPU | 8-core, 2.0Ghz Cortex A75x2 Cortex A55x6 |
| RAM | 4G/8G |
| Flansh | 64G/128G/256G |
| MCU | MTK8667 |
| Phone Link | Wireless CarPlay / Android Auto |
| LCD Screen | 1280*720 IPS and Customization |
| Touch Screen | G+G (2.5D) |
| TFT drive IC | MTK 8667 |
| Amplifier IC | TDA 7388 / TDA 7851 |
| Radio IC | TDA 7708 FM/AM/RDS |
| Bluetooth IC | V5.0 |
| DSP | Built-in DSP |
| Internet | 4G SIM Card and WiFi |
| Audio output | 4-Ch |
| Video output | CVBS/HDMI Optional |
| AVM 360 | 4-Ch 1080P Camera |
| USB interface | USB1(CP&AA); USB2;USB3 |
| Multimedia Parameters | |
| Music format | MP3、WMA、AAC、WAVE, FLAC, APE, OGG, RA |
| Video format | MKV,AVI,MOV,MP4,3GP,MPEG, DAT,VOB,WMV,FLV,RMVB,RM,TS,TRP,M2TS |
| Picture format | JPG/BMP/JPEG/GIF/PNG |
| Radio Parameters | |
| frequency range | FM：87.5MHz-108.0MHz, AM:522KHZ-1622KHZ |
| Radio storage station | FM/AM/RDS |
| Radio area | Global |
| Working voltage and memory current parameters | |
| working voltage | 9V～16V |
| working temperature | 一20℃一70℃ |
| Memory current | < 5MA |
| Power amplifier parameters | |
| Test voltage | 14.4V |
| Maximum output power | 4*25W |

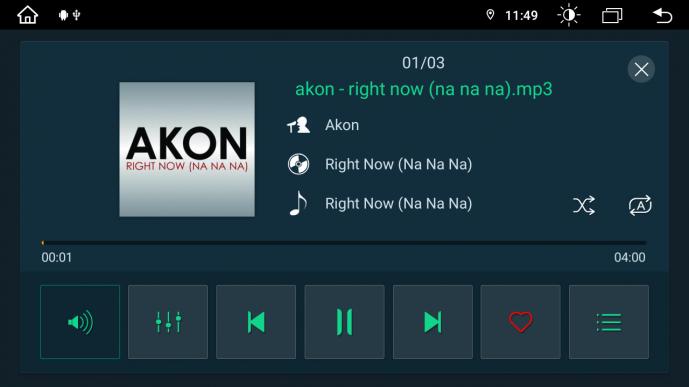

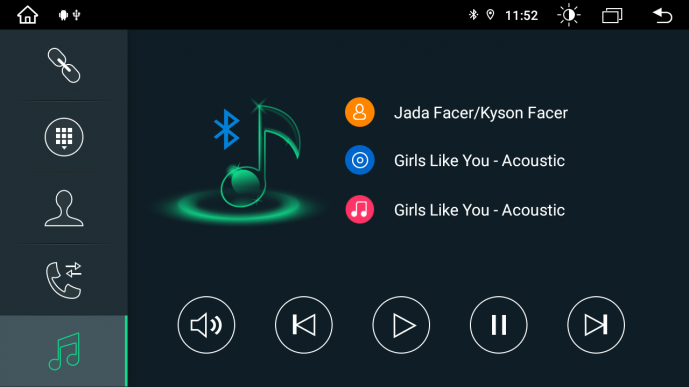

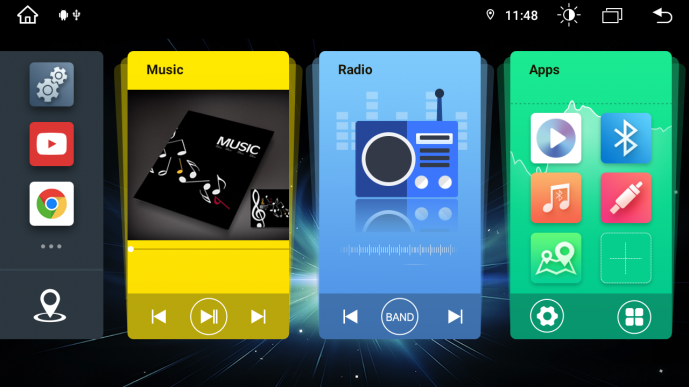

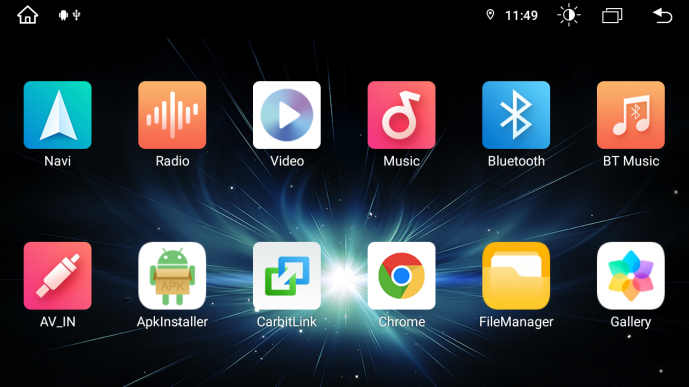

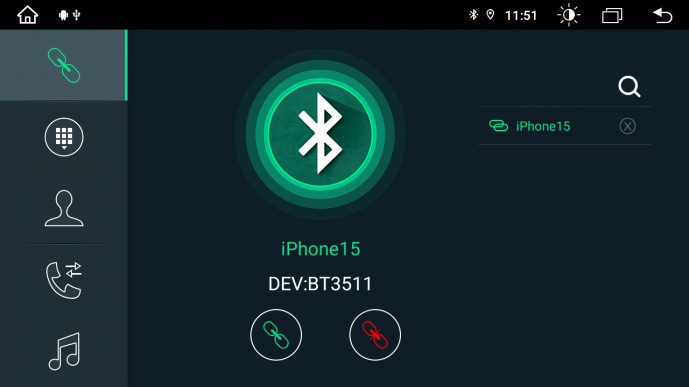

UI INTERFACE DESIGN
