Qualcomm Octa-Core Android 10 BT-5.0, CarPlay and Android Auto, DSP, High-end Customized OEM, Please Download the Product Catalog to Check More Models
Android Special Car Multimedia Catalog-Dinpei(HK).pdf

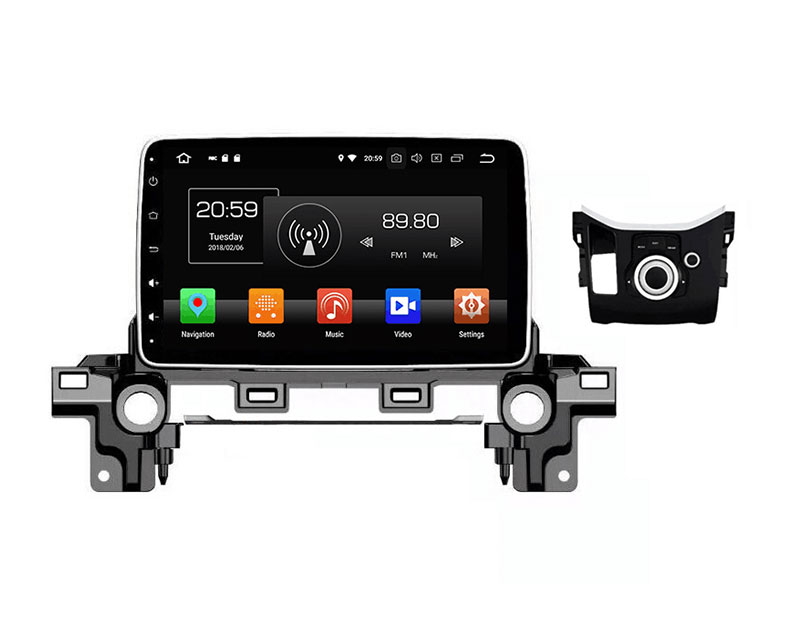

Android Qualcomm Special Car Multimedia Car Navigation
SPECIFICATIONS
| OS | Android 10 System |
| CPU | Qualcomm, 8-Core |
| RAM | 4G SAMSUNG DDR3 |
| Flash | 32G/64G |
| GPS | SIRF III |
| LCD Screen | Hanstar Screen 1024*600/1920*1080 IPS |
| Touch Screen | G+G (2.5D) |
| Phone Link | CarPlay / Android Auto / Mirror Link |
| TFT drive IC | Rockchip PX5 or PX6 |
| Amplifer IC | TDA 7851 |
| Radio IC | NXP 6686 |
| Buletooth IC | GOC-MD-6202A V5.0 |
| Video encoder | HD(720p,1080i,1080p) |
| Video input | One way reversing CVBS input + one way rear video input |
| Audio input | AUX |
| Video output | Two way rear video output |
| Audio output | Line out 4ch Subwoofer 2ch |
| USB interface | USB1(CP&AA); USB2 |
| Multimedia Parameters | |
| Music format | MP3、WMA、AAC、WAVE,FLAC,APE,OGG,RA |
| Video format | MKV,AVI,MOV,MP4,3GP,MPEG, DAT,VOB,WMV,FLV,RMVB,RM,TS,TRP,M2TS |
| Picture format | JPG/BMP/JEPG/GIF/PNG |
| Radio Parameters | |
| frequency range | FM：87.5MHz-108.0MHz, AM:522KHZ-1622KHZ |
| Radio storage station | FM/AM/RDS |
| Radio area | Global |
| Working voltage and memory current parameters | |
| working voltage | 9V～16V |
| working temperature | 一20℃一70℃ |
| Memory current | < 5MA |
| Power amplifier parameters | |
| Test voltage | 14.4V |
| Maximum output power | 4*45W |
INTERFACE DISPLAY
FEATURES
Qualcomm
Wireless Carplay and Wired Android Auto
Android 10.0 with DSP
Bluetooth 5.0
WARRANTY
Warranty: 18 Months Manufacturer warranty
We provide warranty service of 18 months after the arrival of the goods and provide free accessories and maintenance instructions. If you have any questions within 18 hours from 6：00 am to 12：00 pm every day, you can contact our after-sales team online to get timely support.
