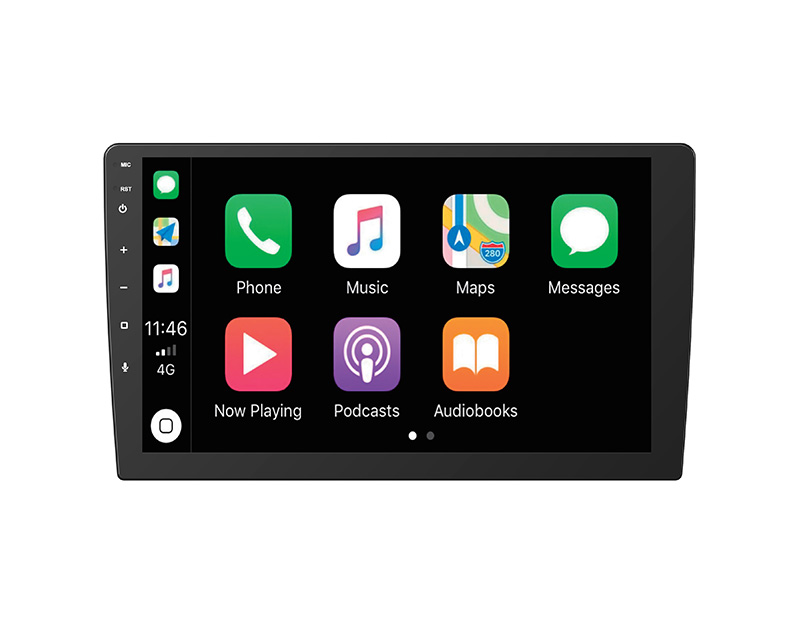

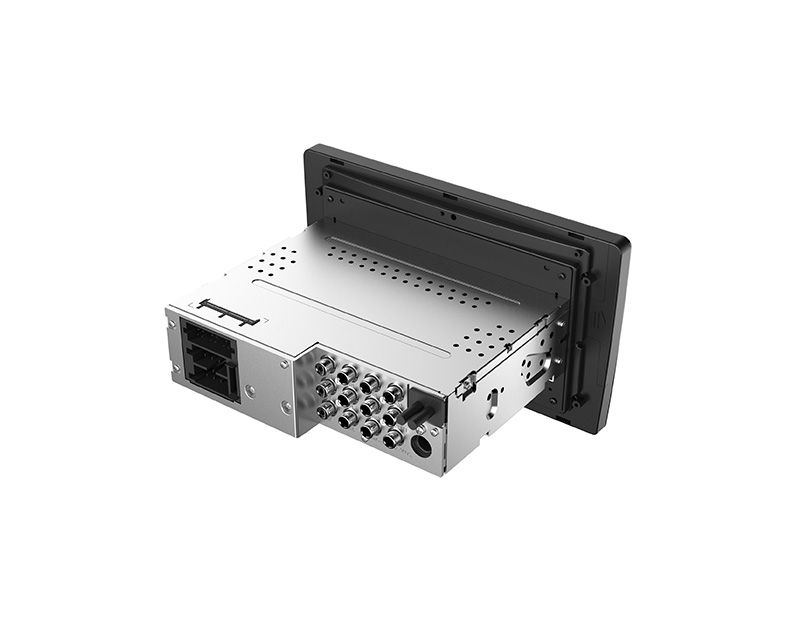

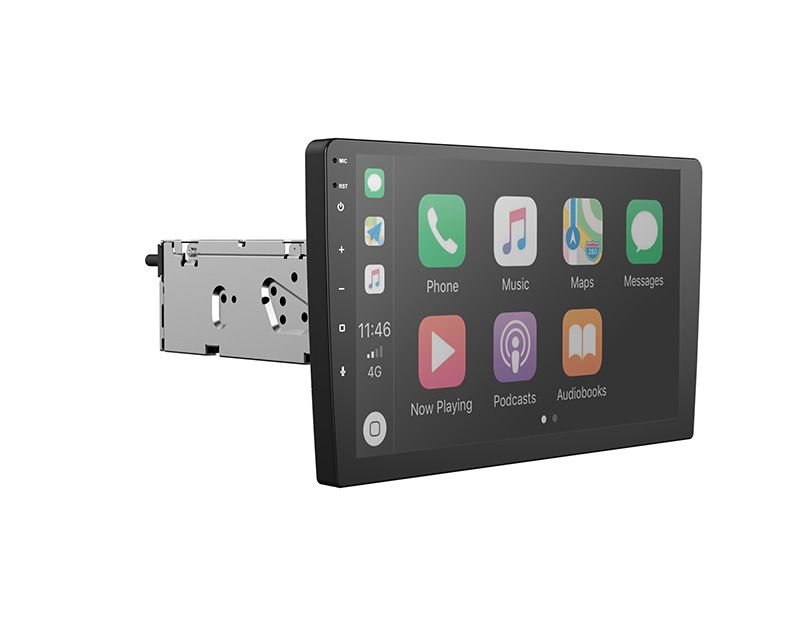

9" Single-Din Universal Car Radio Supplier with Private Capacitive Full Touch Screen, BT V4.1, Built-in Apple CarPlay (Wired) with License and Android Auto (Wired), 2 Rear USB Input
Item #: 1911S
9-inch CarPlay Linux System Car Stereo with Apple License
SPECIFICATIONS
| OS | Linux 3.4.5 |
| CPU | SPHE 8368-C ARM Cortex-A9 single core |
| RAM | 512M |
| Flash | 512M |
| MCU | MN101AF68G (Panasonic） |
| Wired Phone Link | Carplay with license/ Android Auto |
| LCD Screen | 9-inch/1024*600/IPS/TN |
| Touch Screen | G+G (2.5D) |
| TFT drive IC | SPHE 8368-C（bulit-in) |
| Amplifer IC | TDA 7388 |
| Radio IC | TEF 6851 |
| Buletooth IC | SPHE 888 V4.1 |
| Video encoder | HD(720p,1080i,1080p) |
| Video input | One way reversing CVBS input + one way rear video input |
| Audio input | AUX |
| Video output | Two way rear video output |
| Audio output | Line out 4ch Subwoofer 2ch |
| USB interface | USB1(CP&AA); USB2 |
| Multimedia Parameters | |
| Music format | MP3、WMA、AAC、WAVE,FLAC,APE,OGG,RA |
| Video format | MKV,AVI,MOV,MP4,3GP,MPEG, DAT,VOB,WMV,FLV,RMVB,RM,TS,TRP,M2TS |
| Picture format | JPG/BMP/JEPG/GIF/PNG |
| Radio Parameters | |
| frequency range | FM：87.5MHz-108.0MHz, AM:522KHZ-1622KHZ |
| Radio storage station | FM/AM |
| Radio area | Global |
| Working voltage and memory current parameters | |
| working voltage | 9V～16V |
| working temperature | 一20℃一70℃ |
| Memory current | < 5MA |
| Power amplifier parameters | |
| Test voltage | 14.4V |
| Maximum output power | 4*25W |

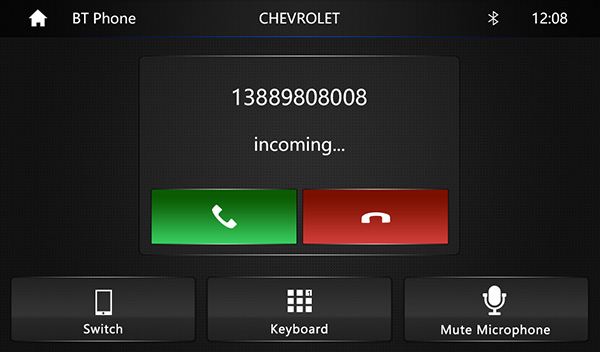

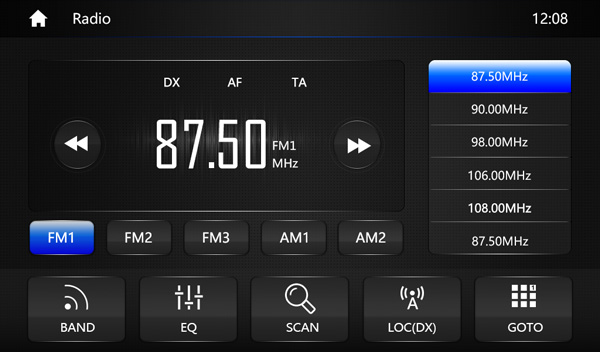

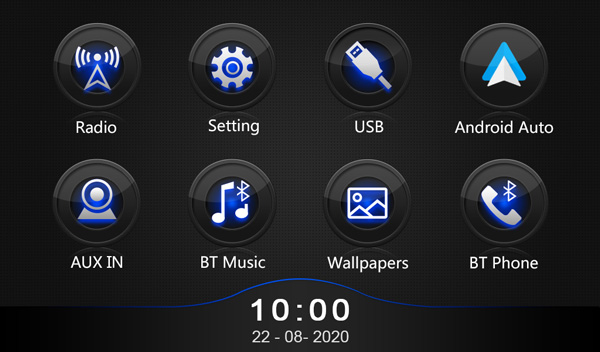

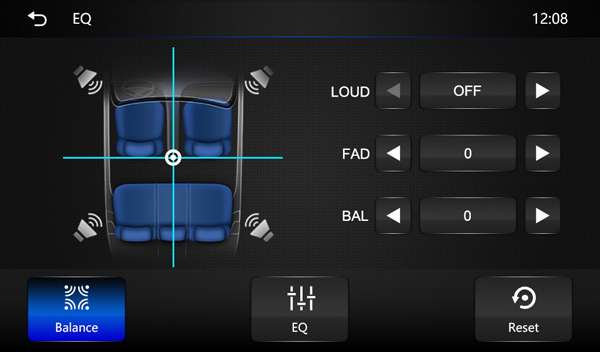

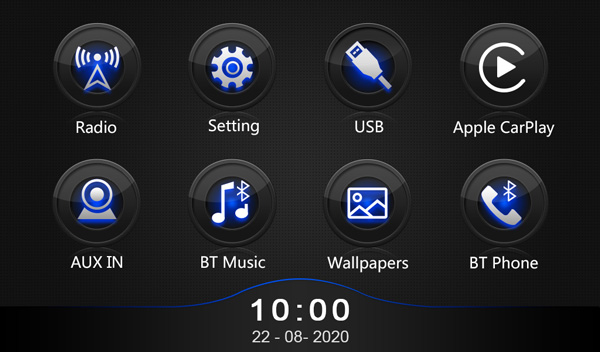

INTERFACE DISPLAY
FEATURES
CarPlay with License
Android Auto
Linux System
9-inch Private Touch Screen
2 Rear USB Input
Support Different Plastic Frame

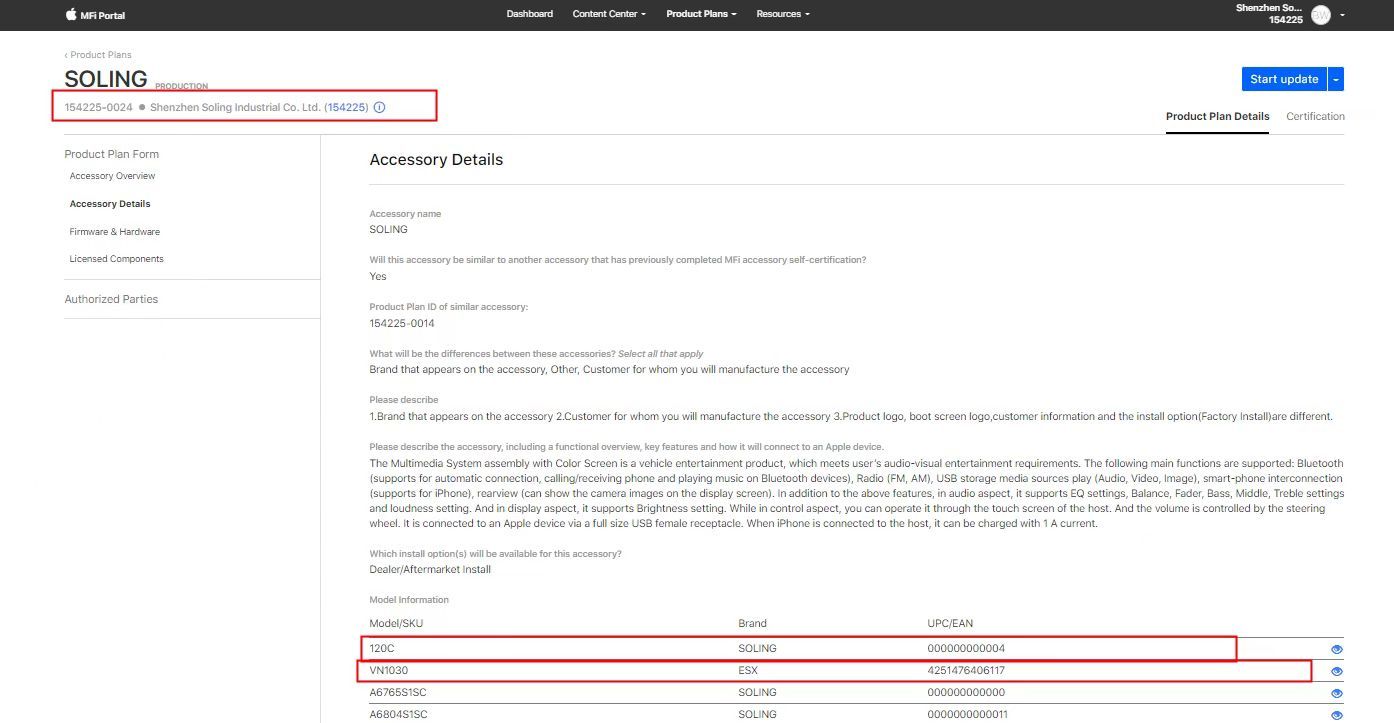

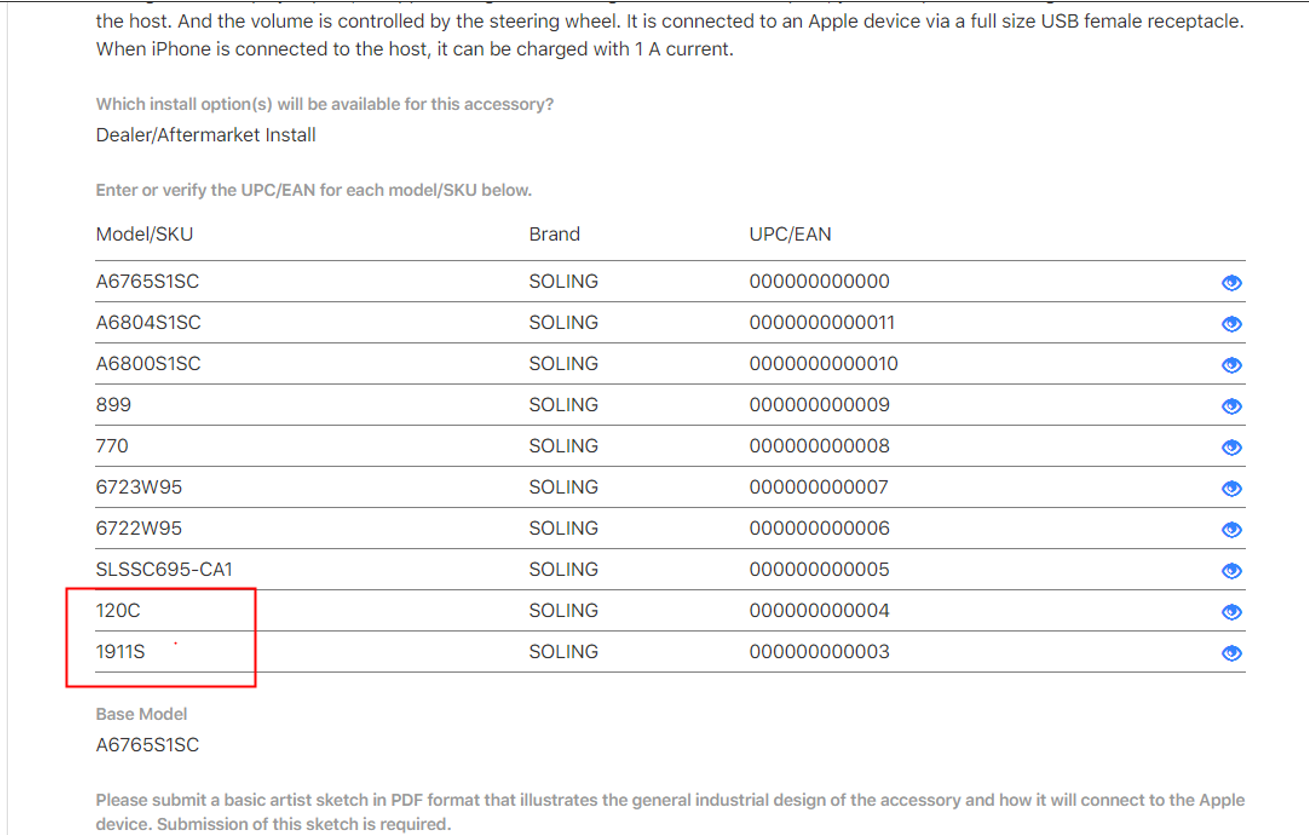

This is our Apple Carplay License:
We also can support your brand with an Apple license same as "SOLING"
WARRANTY
Warranty: 18 Months Manufacturer warranty.
We provide warranty service of 18 months after the arrival of the goods and provide free accessories and maintenance instructions. If you have any questions within 18 hours from 6：00 am to 12：00 pm every day, you can contact our after-sales team online to get timely support.
